Top Mounted Magnetic Level Indicator

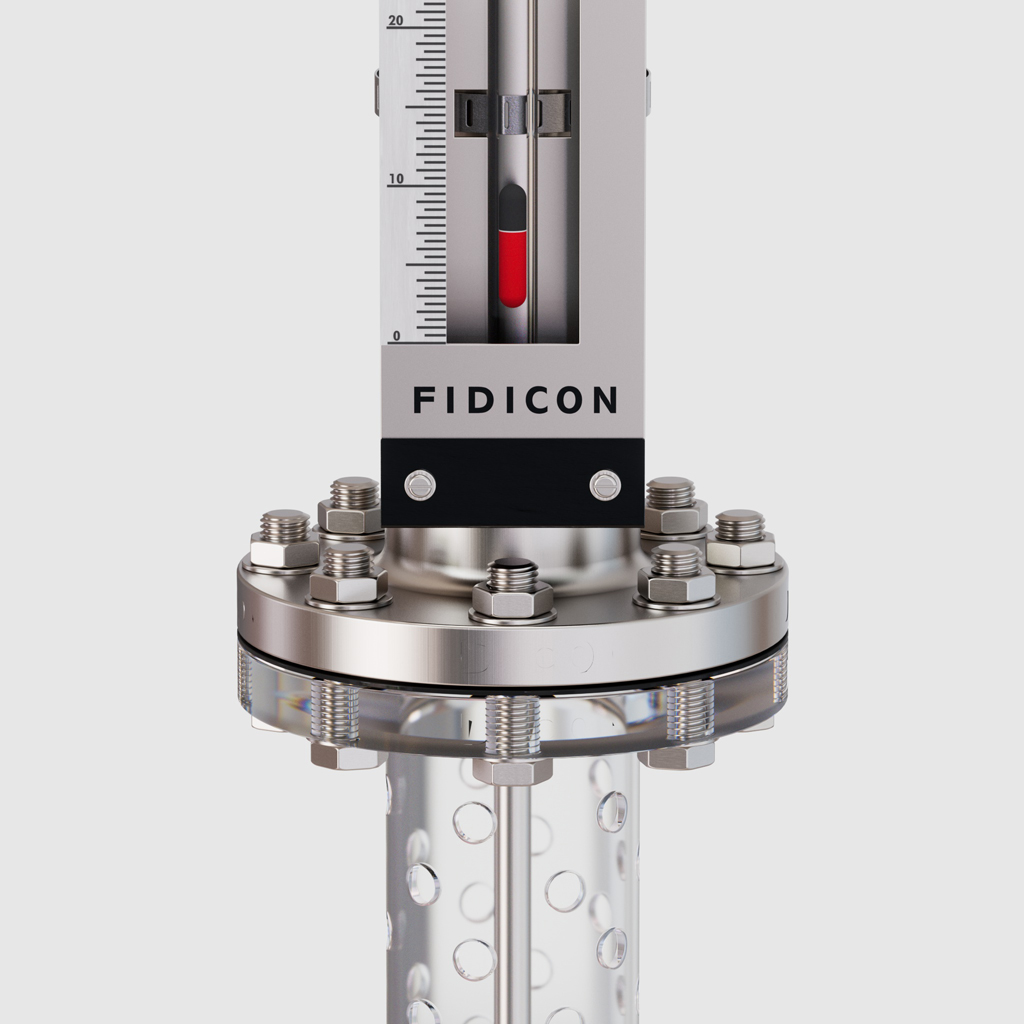

A Top Mounted Magnetic Level Indicator (TMLI) is a type of liquid level gauge that is mounted on the top of a storage tank or vessel to provide a visual indication of the liquid level inside. It consists of a float inside the tank that moves up and down with the level of the liquid, and a magnetic board outside the tank which shows the position of the float. The board is typically equipped with markings to indicate the liquid level at various points. The TMLI is commonly used in various industries, including chemical, petroleum, and water treatment, to monitor the liquid levels in storage tanks and vessels. It is a cost-effective, simple, and reliable solution for measuring liquid levels, and does not require any electrical power to operate.

Product Details

Mounting Orientation Top
Material Stainless Steel
Glass Material Borosilicate
Application Chemical Industries
Process Connection Flanged
Operating Pressure upto 20 kg / cm2
Operating Temperature 350 degree C
Density 0.6
Viscosity 250 cp

Specifications

Liquids Acids/Alkalies/Solvents/Oils/
Lubricants/Liquid Gases
Stored in Underground or
Over Ground Tanks
Density / Sp. Gravity Minimum 0.6
Temperature Up to 350° C
Tank Hight (Range) Up to 3000 mm
Material of Wetted Parts MS/CS/SS304/304L/316316L PTFE Lined SS/PVC/PP
Connection Flanged to ASA/BS/DIN/
Triclover
Top Mounted Magnetic Level Indicator Viscosity Up to 250 cp
Top Mounted Magnetic Level Indicator Pressure Up to 20 Kg/cm²
Minimum Nozzle size required 4” NB for Liquids Below 0.8 Density
